What a Telescopic Belt Conveyor Does—and Why It Transforms Dock Operations

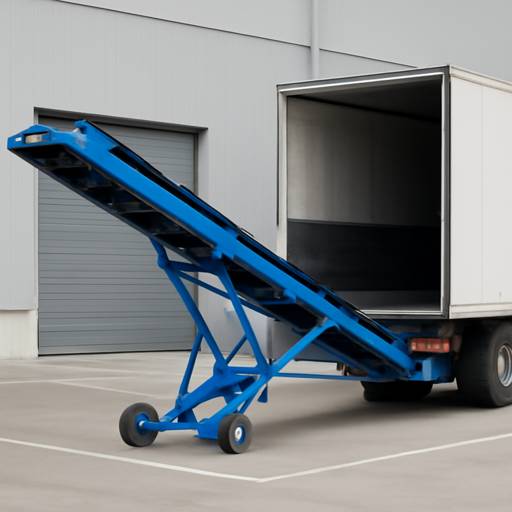

A telescopic belt conveyor is an extendable boom conveyor engineered to bridge the gap between a fixed conveyor line and the back of a vehicle. It retracts when idle and extends deep into trailers or containers, placing the belt where packages or materials are handled—reducing walking, lifting, and waiting. For high-turnover docks handling parcels, cartons, sacks, tires, or loose goods, a telescopic belt conveyor for truck loading and unloading turns a labor-intensive bottleneck into a predictable, high-throughput flow. By bringing the conveyor to the operator inside the vehicle, teams can maintain consistent pace and ergonomics while cutting cycle times.
How it works is simple but powerful. Multiple boom sections glide within one another, guided by rails and driven by chains or belts. A robust belt—often with anti-slip cover and crowned pulleys—carries goods in either direction. Controls on an operator platform or joystick allow extend, retract, belt start/stop, and occasionally height or angle adjustments. Optional hydraulic or electric elevation aligns the discharge height to different trailer beds. Because the system is reversible, it supports both truck loading and unloading with the same asset, keeping utilization high throughout shifts.
The performance impact is measurable. Operations typically report 30–50% faster loading times for parcel and e-commerce traffic, while reducing manual walking distances by up to 60–70%. In busy parcel hubs, one extendable conveyor can replace multiple manual lines, consolidating supervision and improving dock discipline. For cross-border logistics and 3PLs, telescopic booms stabilize throughput across varying trailer types—curtain-siders, box vans, and 40-foot containers—without reconfiguring the dock. In industrial settings, they relieve strain during bulk component or bagged material handling, where consistency and operator posture matter as much as speed.
Design choices reflect application demands. Belt widths often range from 600 to 1000 mm to accommodate package footprints. Boom lengths can exceed 12–16 meters to reach the nose of deep containers. Speeds are governed by inverters for smooth acceleration, and soft-start functions protect both the belt and the load. Modern systems add safety light curtains, emergency stops along the boom, anti-collision sensors, and LED work lights for visibility inside dark trailers. Built-in scales or barcode readers at the nose can feed data to warehouse software, creating traceability at the precise point of vehicle interface.
Features That Matter: Safety, Integration, Mobility, and Energy Efficiency
Prioritizing the right features determines whether a telescopic solution pays back quickly or becomes a maintenance headache. Safety is non-negotiable: look for full-length E-stop cords, pinch-point guarding, safe torque off on the drive, overload detection, and acoustic-visual alerts when the boom moves. Light curtains or presence sensors can slow or stop motion if an operator is too close to moving sections. LED task lighting at the boom head reduces misplacement and tripping in poorly lit trailers, while anti-slip nose extensions and side guides help steer awkward packages.
Operational control should feel intuitive. A robust HMI with simple icons, tethered or wireless belly-box controls, and programmable limits prevents over-extension and collisions at the dock face. Reversible belts support both cycles, while a creep mode helps operators position delicate loads. Variable frequency drives (VFDs) smooth acceleration and let teams adapt belt speed to package mix. In sites with mixed vehicle heights, powered elevation maintains ergonomic handover height; add a tilting nose for sack or tire handling to further reduce strain.
Integration separates stand-alone machines from productive systems. When tied into a site’s conveyor backbone, telescopic booms coordinate with accumulation zones, sorters, or loop conveyors. Upstream singulation, dimensioning-weighing-scanning (DWS), and quality checks can be synchronized so the dock never starves or chokes. For digital oversight, PLC or industrial Ethernet connectivity supplies live KPIs—throughput, run hours, faults—directly to the WMS or MES. That feedback closes the loop between planning and reality, revealing constraints like trailer dwell time or shift change dips.
Layout constraints call for mobile or traversing solutions. A rail-mounted chassis lets one unit service multiple dock doors, balancing capital spend against utilization. Steerable wheel sets or a pit-mounted track minimize floor obstruction, and low-profile frames preserve forklift access. For high-density docks, auto-docking to pre-set door coordinates speeds changeovers. Where floor loads and slab strength vary, engineered baseplates distribute weight and resist dynamic forces from frequent starts and stops.
Energy efficiency compounds savings in 24/7 operations. High-efficiency IE3/IE4 motors, regenerative braking on declines, and smart idling reduce kWh per handled unit. Belt selection also matters: low-drag covers, sealed bearings, and crowned pulleys trim losses while extending service life. In regions with strict standards, CE-compliant electrics and ISO-aligned manufacturing offer consistent quality and maintainability. Manufacturers with strong R&D and in-house fabrication bring faster customization—extra boom stages, specialized belts for rubber granules or bagged cement, or integrated scanners—without compromising lead time. For a broad view of configurable options, explore telescopic belt conveyor for truck loading unloading offerings that are designed to slot into parcel, warehousing, cross-border logistics, and industrial loading lines.
Selection, Deployment, and ROI: From Site Survey to First Loaded Trailer
Choosing the right system starts with a clear picture of demand and constraints. First define peak and average rates (packages per hour), package characteristics (dimensions, weights, surfaces), and vehicle mix (trailers, containers, straight trucks). Model a loading cycle: door open, initial extension, belt feed, repositioning, and final retraction. Simple math turns targets into specs: required belt speed = target pph × average package length × spacing factor. Then check reach: boom extension must comfortably reach the nose of the longest vehicles while retracting fully to keep the aisle clear.
Next, evaluate ergonomics and safety around the dock. Determine handover height for operators inside the trailer; if you load from pallets, ensure height adjustability matches pallet stack profiles. Map emergency egress paths and ensure boom positioning does not block exits or scanner lines of sight. Audit floor conditions for levelness and load rating; telescopic units exert point loads at wheel sets or track footings, and an engineered base may be required. Power availability, cable routing, and network drops for PLC connectivity should be planned ahead to avoid afterthought cabling or trip hazards.
Deployment follows a tight sequence. A site survey captures door dimensions, bumper offsets, and approach angles. Mechanical installation aligns rails or wheel sets, then electricians commission drives, sensors, and interlocks with upstream conveyors. Factory acceptance tests verify extension accuracy, belt tracking, and E-stop functionality; site acceptance tests stress the system with real SKUs and mixed loading patterns. Operator training covers safe controls, package orientation rules, jam clearing, and communication protocols with forklift drivers or tug teams.
ROI builds from speed, labor, and damage reduction. Consider a parcel dock targeting 1,800 pph on two doors. Manual walk-in loading averages 1,100 pph with three operators per door. Installing two telescopic belts lifts each door to 1,700–1,900 pph with two operators, reducing headcount by 33% and cutting dwell time by 40%. Over a year, this frees thousands of labor hours while improving on-time departures. In an e-commerce cross-border node handling 40-foot containers, one extendable unit reduced belt-to-van walking by roughly 65%, trimming shift fatigue and late dispatch fees. A tire distributor using a tilting-nose variant reported 50% fewer strain-related incidents and cleaner pallet presentation at retailers, reducing claims and rework.
Maintenance discipline protects uptime. Weekly inspections for belt wear, tracking, and debris at the nose roller prevent premature failures. Lubricate boom guides and check chain tension to maintain smooth extension. Verify sensor alignment, test E-stops, and confirm limit switches at full extension/retraction. Quarterly, audit VFD parameters, motor temperatures, and bearing noise trends; condition-based alerts can catch issues before they escalate. Keep spare belts, nose rollers, and sensor sets on hand to avoid overnight outages during peak season.
Partnering with a manufacturer that blends engineering depth with quick support shortens time to value. Providers rooted in logistics equipment R&D and manufacturing—serving express, warehousing, cross-border logistics, and industrial loads—are well positioned to tailor boom lengths, belt types, and controls to local standards and workflows. In fast-growing trade corridors and export hubs, the ability to deliver, install, and commission rapidly can decide seasonal success. Equally important is post-install service: remote diagnostics, local spare inventories, and on-site technicians who understand both mechanical alignment and PLC logic.
When specified and integrated thoughtfully, a telescopic belt conveyor turns the dock from a variable, labor-heavy stage into a predictable flow machine. It aligns ergonomics with throughput, provides measurable energy and labor savings, and scales with demand—across express parcel peaks, omni-channel fulfillment surges, and steady industrial shipping cycles. The result is more goods moved with fewer steps, safer teams, faster turns, and a dock that finally keeps pace with the rest of the line.
